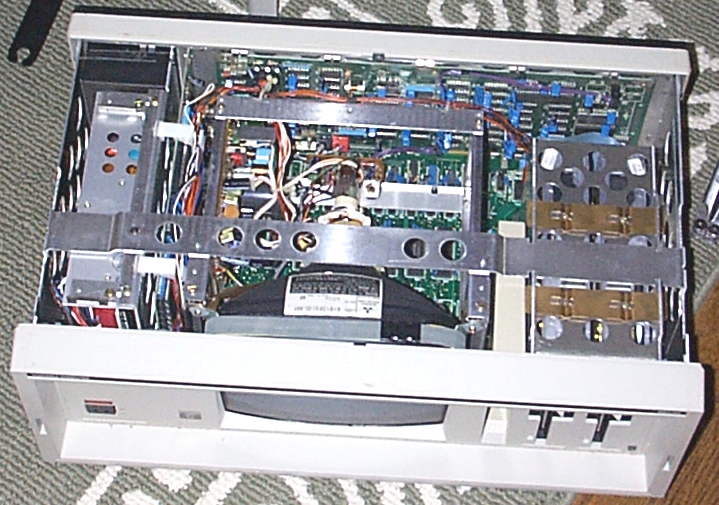

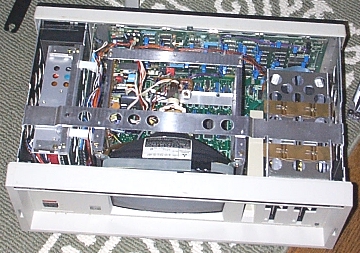

This is the P2000C with the top cover removed. The CRT tube
is in the center; the power supply is on the left; the dual
5.25" floppy drives are on the right.
|
|

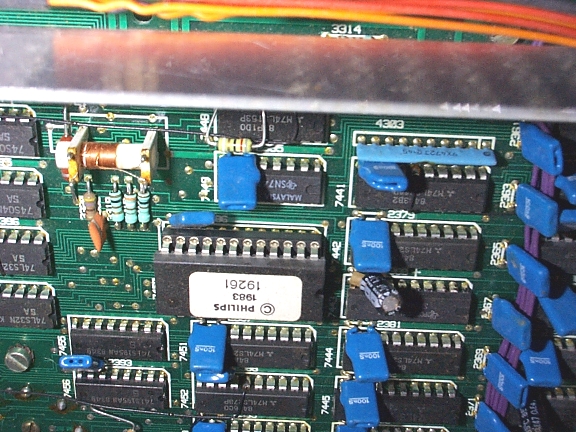

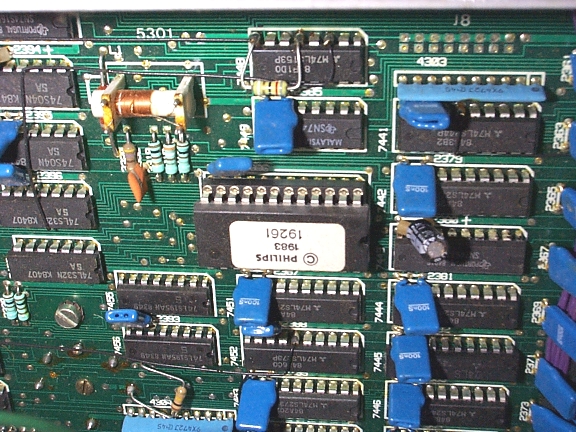

This is the center of the rear main board. The EPROM is labeled
(c) PHILIPS
1983
19261
|
|
This is the right-hand side of the rear main board.
You can see a black wire running across the large Hitachi chip
(a post-production modification?).
|
|

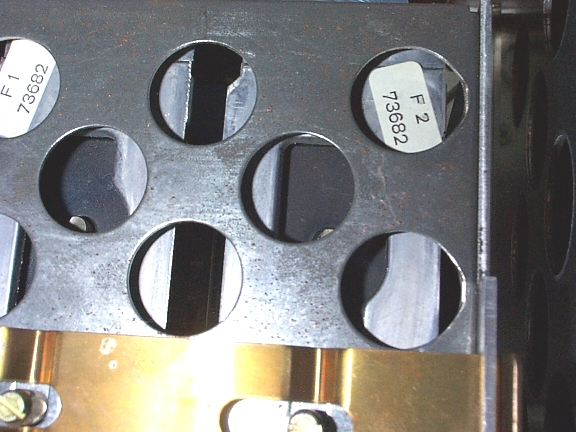

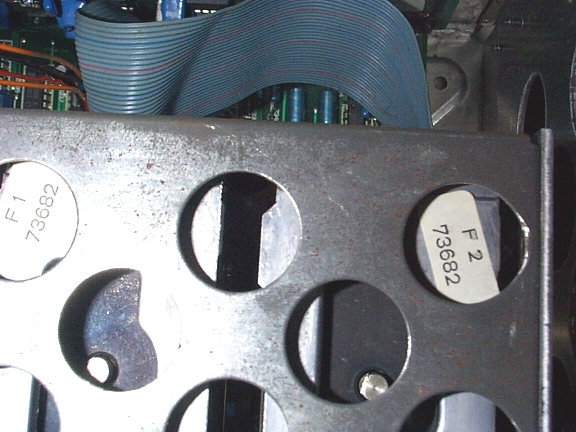

The dual 5.25" floppy drives have individual stickers.
Apparently the 'F' indicates these are 600K drives.
|
|
CO-POWERBOARD (CO-PROCESSOR BOARD)
|
The co-powerboard is sandwitched between the power supply and
the CRT driver board.

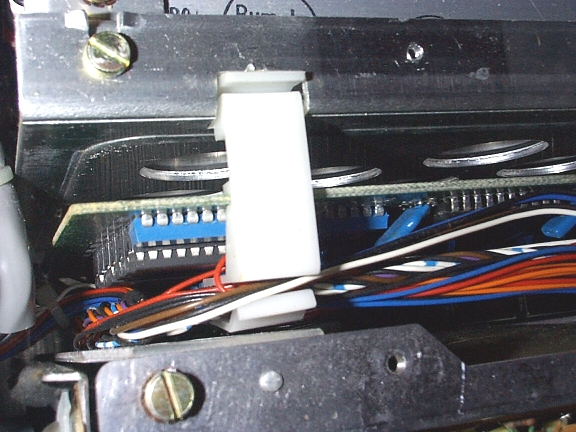

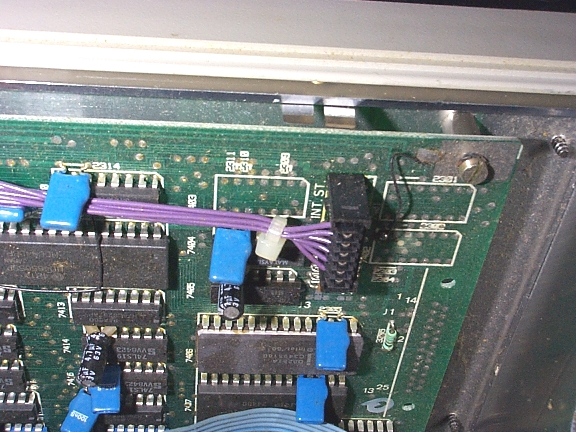

This is the front edge of the co-powerboard. There are a series
of empty sockets (additional memory?) on this end.
|

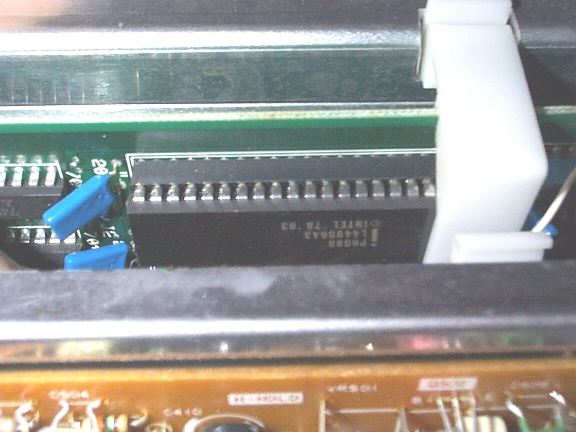

This is the rear edge of the co-powerboard. The socketed 8088 can
be seen on the left side of the photo.
|

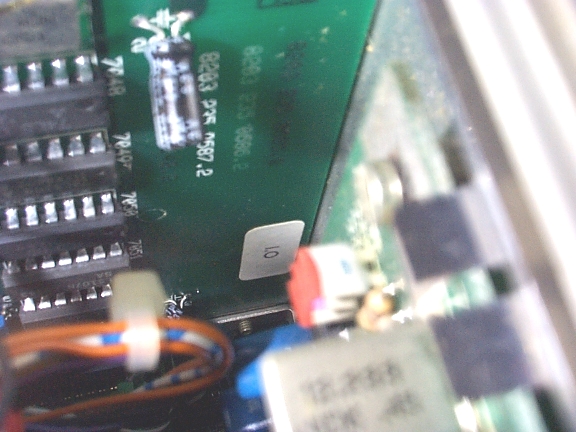

This is the rear edge of the co-powerboard, with identifying
silkscreen and a sticker.
|
This is the socketed 8088 processor.
|
| |
