MOSTEK MK3870 MICROPROCESSOR

I am interested in acquiring and preserving early microprocessor equipment, including those devices that used the Mostek processor. I am also interested in associated peripherals, manuals and other documentation.
If you have any of these items or know where to find them, please send me an e-mail.

The Mostek MK-3870 is an early 8-bit microprocessor modeled after the Fairchild F8.

Mostek was purchased by Thompson-CSF in 1985.

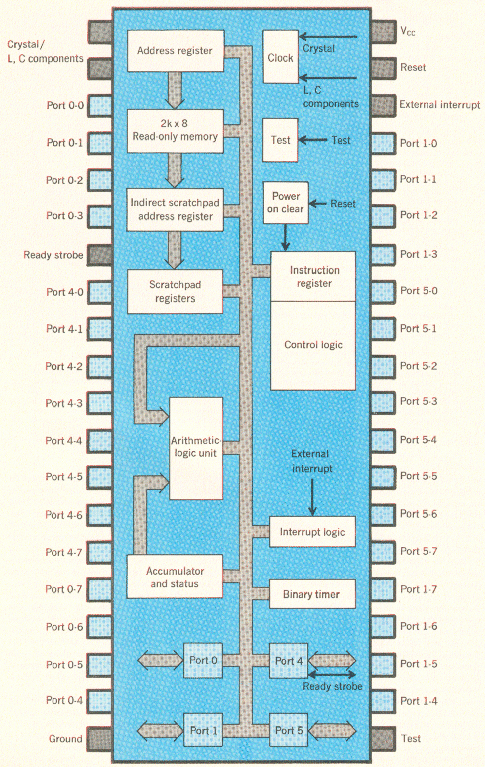

PINOUTS

The following diagram appeared in the July 1977 issue of IEEE Spectrum magazine.

EMULATOR

Mostek also created an emulator board, the EMU-70, that is electrically equivalent to the 3870 and can be reprogrammed.

MOSTEK MK2780

This announcement appeared in the September 1982 issue of IEEE Spectrum magazine.

MK3870 microcomputer offered in 28-pin version
The MK2870 single-chip microcomputer is packaged in a 28-pin plastic DIP as opposed to the 40-pin package of the industry-standard MK3870. Areas of application include video games, appliances, and controllers.
The device has 1 kilobyte of ROM, 64 bytes of RAM, and 20 pins for user I/O. The part is software-compatible with the Mostek MK3870 family. New users can develop software on the Mostek Radius remote development station or on the Matrix stand-alone hardware- and software-development system.
Price is $3.55 each in minimum quantities of 5000 pieces.
Mostek Corp., 1215 W. Crosby Rd., Carrollton, Texas 75006.
