MX-COM KEY LOADER
I have a circa 1987 MX-COM keyloader, P1280 series, with no documentation.

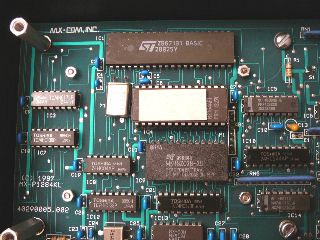

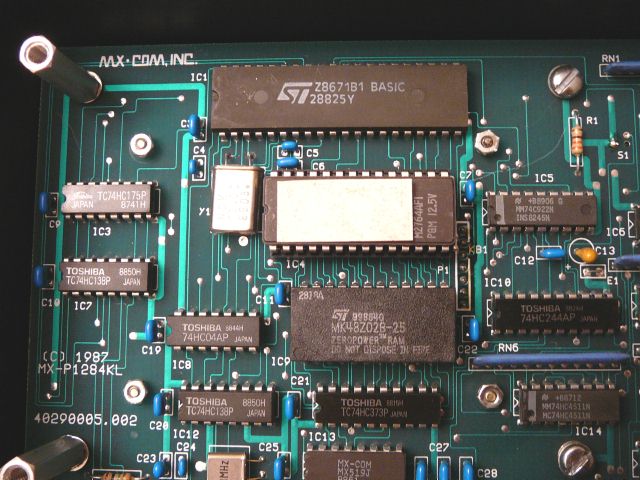

It has the following internal parts on a printed circuit board marked MX-P1284KL:

  • SGS-Thompson Z8671 MCU
  • M2764AFI NMOS 8K x 8 EPROM
  • SGS-Thompson MK48Z028-25 Zeropower RAM

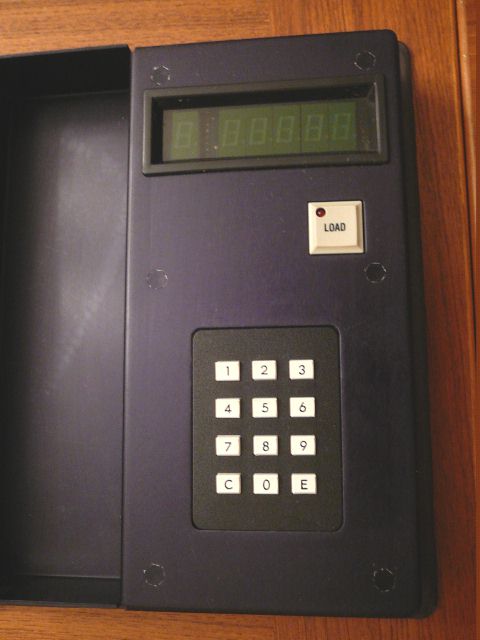

The keyloader comes in a vinyl case with a cigarette-lighter power connector and a stereo-style jack connector.

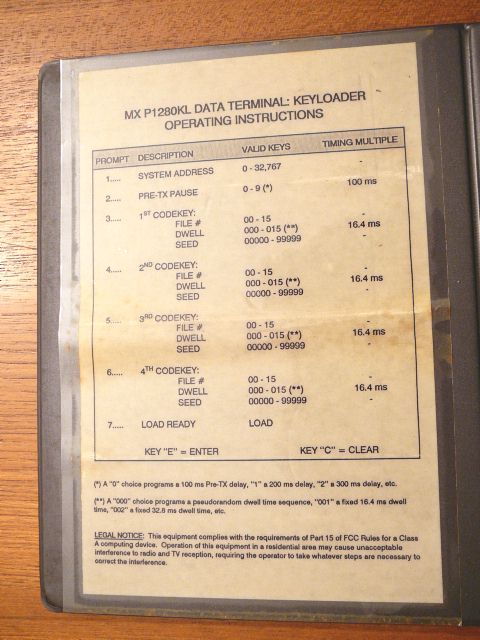

The one-page programming sheet:
