8-inch Floppy Disk Drive

I am looking for documentation related to this drive and recommendations for an interface card that would allow me to use it on a "modern" computer.

This rack-mount disk drive appears to have come out of a paging system.

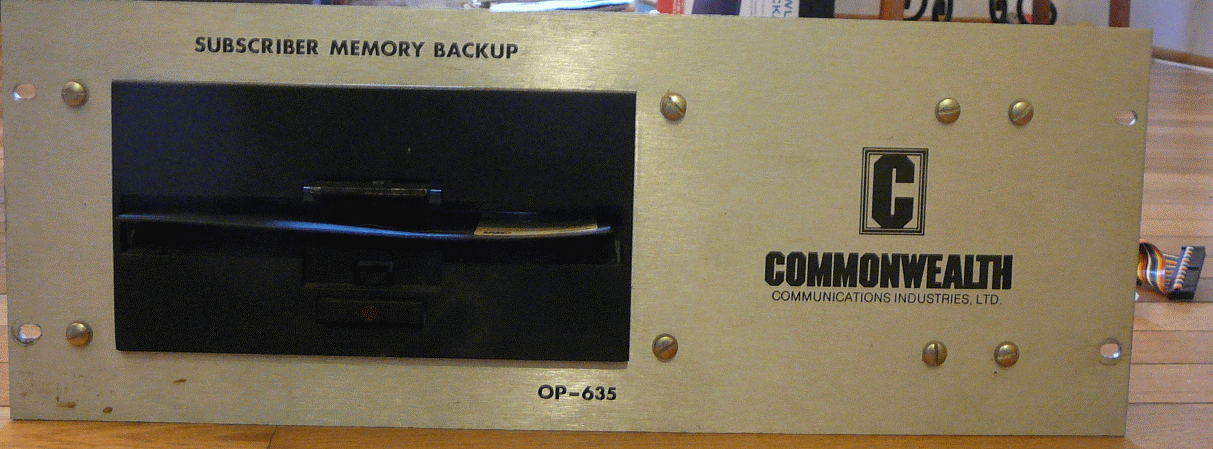

It is labeled "Subscriber Memory Backup" from a Virginia-based company called Commonwealth Communications Industries, Ltd. The model number is apparently OP-635.

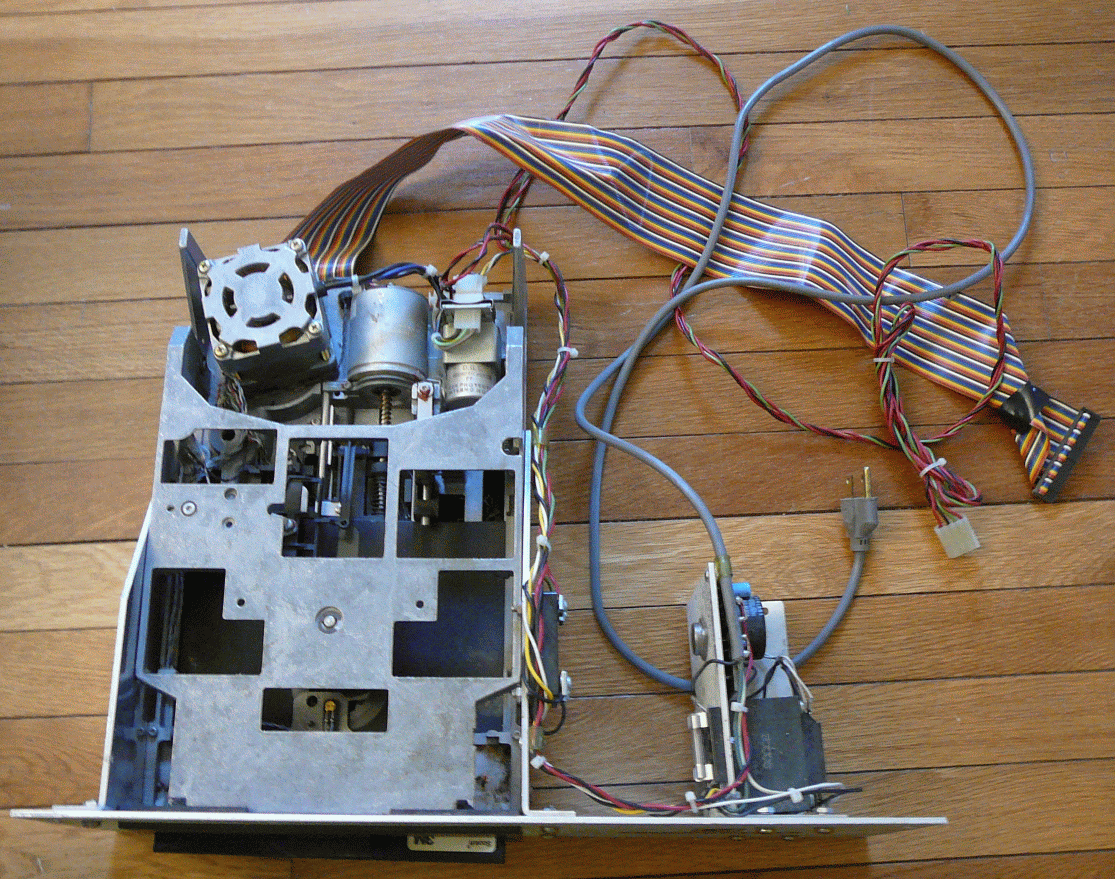

The unit has a standard 3-prong AC power cord, a keyed 4-pin female power connector, and a 50-pin ribbon cable with a dual row female connector.

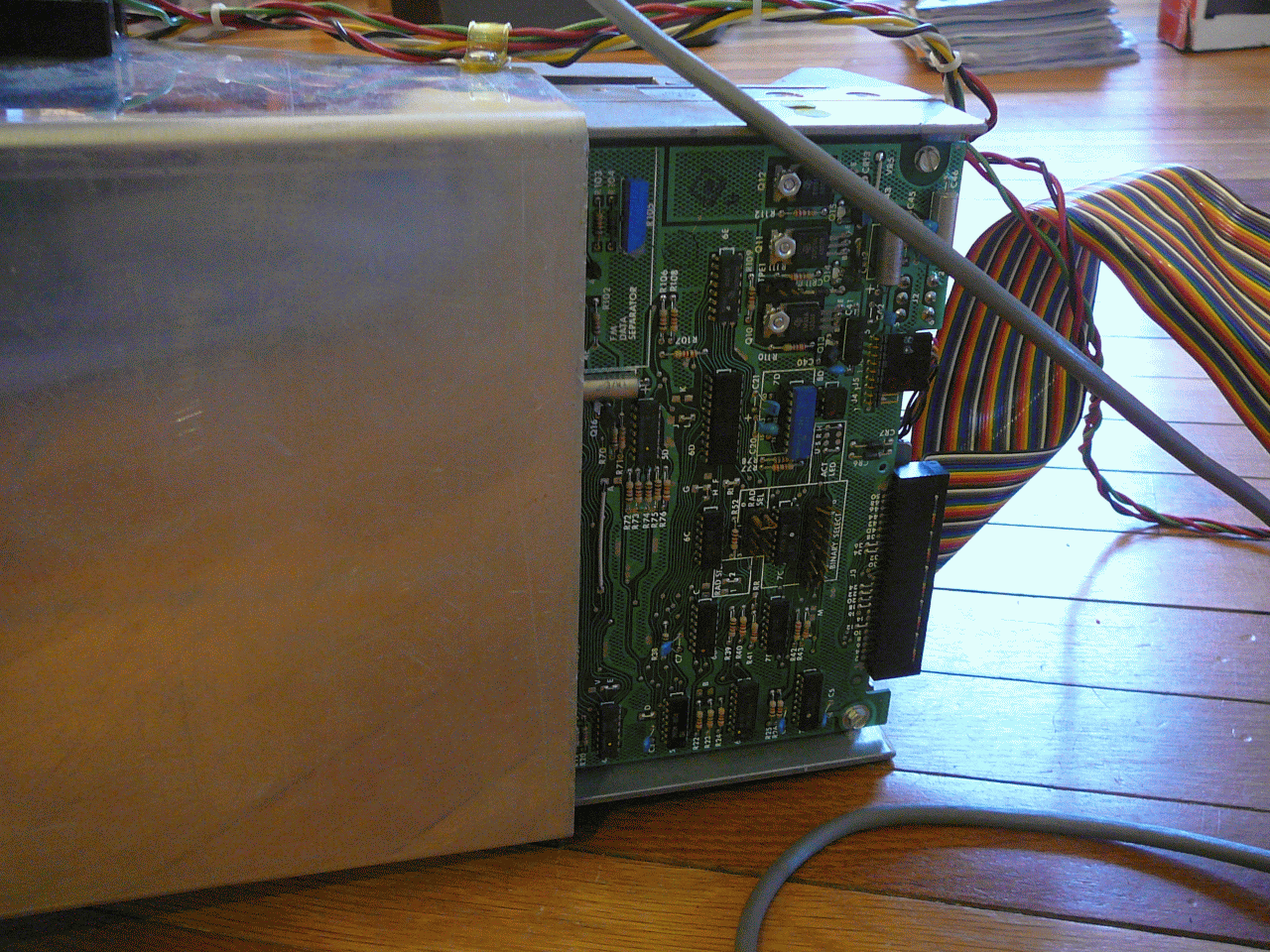

The drive controller electronics are located underneath the drive mechanism.
